Size and Weight

Product name	Referred to as	Size (mm)	Weight (kg)

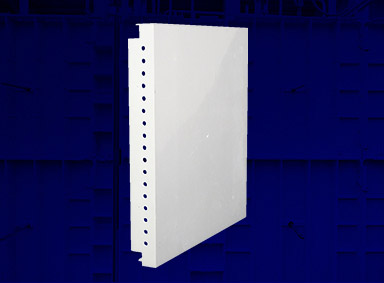

Flat panel	60-180	600×1800×72	15.20
	60-120	600×1200×72	10.60
	60-60	600×600×72	5.70
	60-30-2	600×300×72	3.00
	60-30-4	600×300×72	2.90
	60-18	600×180×72	2.65
	30-30	300×300×72	2.02
	18-30	180×300×72	1.05
	18-18	180×180×72	0.70
	15-30	150×300×72	0.92
	15-18	150×180×72	0.60
	15-15	150×150×72	0.45
	12-30	120×300×72	0.74
	12-18	120×180×72	0.49
	12-12	120×120×72	0.28
	09-30	90×300×72	0.65
	09-18	90×180×72	0.40
	09-09	90×90×72	0.18
Adjuster	AJ-03-60	30×600×72	0.64

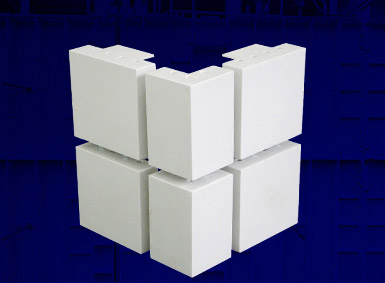

Outside corner	D-09	90×72×72	0.08
	D-12	120×72×72	0.11
	D-15	150×72×72	0.14
	D-60	600×72×72	0.70
	D-180	1800×72×72	2.10

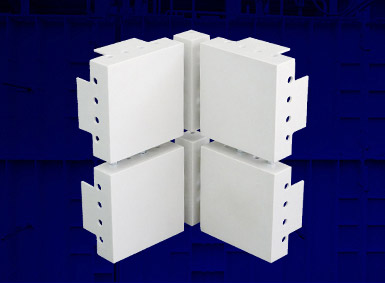

Inside corner	I-09-09	90×90×90×72×72	0.43
	I-09-12	120×90×90×72×72	0.57
	I-09-15	150×90×90×72×72	0.65
	I-09-18	180×90×90×72×72	0.76
	I-09-30	300×90×90×72×72	1.29
	I-09-60	600×90×90×72×72	2.50

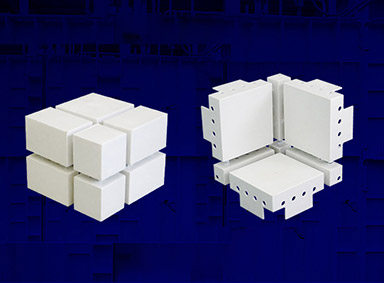

Three-side-corner	3D-09	40×40×40	0.03
	3I-09	90×90×90×40×40×40	0.50
	3ID-09	90×90×72×72×40×40	0.23

Maintenance

In order to use Gatch for a long time, proper maintenance is very important. Please comply with the following instructions.

• Before using

  Apply release agent over the surface of Gatch. This will prevent concrete from sticking to Gatch.

• After using

  To remove concrete residues, wash the surface with high-pressure water.
  Do not scrape the concrete from the surface. Otherwise, the surface could be damaged.

• Storage

  Keep Gatch at a storehouse with a roof. Avoid exposure to direct sunlight for extensive periods.
